MODEL

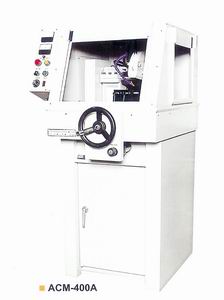

ACM-400A 7.5HP

ACM-400A 10HP

Cutting Capacity

Rod Ø80mm

Rod Ø90mm

Cutting Method

Auto-feed in horizontal direction

Vise

Opening 160 x H68mm. The right vise may be adjusted right and

left for about 26mm. The left vise may be adjusted forward and

backward for about 60mm. The right and left of vise should be moved at the Y-axial direction,turn the knob with shift of 2.0mm for

each circle.

Spindle Speed

2000 RPM

Main Motor

7 1/2HP 3 phase

10 HP 3 phase

Cooling Pump

1/4 HP 3 phase

Suitable Wheel

Ø 400 x 4.0t x 25.4id (31.75)mm

Power

AC220V/60Hz 3 phase  / Optional:AC380V/415V/440V/50Hz.60Hz 3phase

Dimension

L1170 x W820 x H1520mm

N.W.

430kg

Accessories

Y-wrench:1pc / Cooling oil :4L / L-wrench:2pcs / 口-wrench : 1 pc
