-- 組立作業工具系列->電動螺絲起子(Conos)

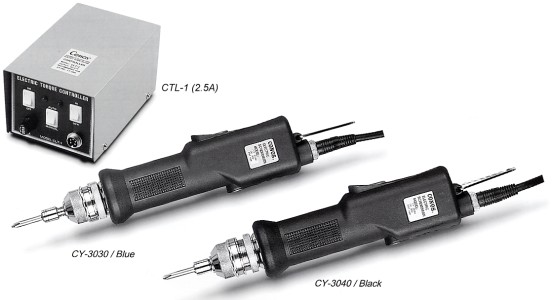

品名:DC Electric Screwdriver
型號:CY-Series


產品說明:
◆ DC Electric Screwdriver
Solid construction and innovative design are apparent everywhere on these tools. The drive shaft is supported at the exit of the tool by the bearing. This greatly reduces the possibility of bent or broken shafts. Rare earth magnet motors yield high performance and long life. Finely sculpted, heavy duty plastic cases increase operator comfort and stand the operate of time.
  • Accurate Torque Control.
  • Lockable External Torque Adjustment......easy to set up and secure.
  • Wide Torque Range.
  • Rare Earth Magnetr Motor......high torque output.
  • Low Torque Reaction.
  • Ergonomic......less operator fatigue.
Model CY-3030 CY-3040
D.C. Motor (VDC) 30 30
Torque (Kgf-cm) 2~30 2~40
RPM 1000 660
Weight (Kg) 0.63 0.63
Grip Size (mm Ø) 37 37
Bit 5mm Ø,
5mm Hex, 1/4" Hex
5mm Ø,
5mm Hex, 1/4" Hex
Controller CLT-1 CLT-1
ESD Model Nil Nil
Push to start Nil Nil
Color Blue Black

Controller CLT-1
Input 110VAC / 220VAC / 240VAC
Output 27 VDC (2.5A)
Weight 3.2 Kg
Dimension (mm) 180 x 120 x 110
Coil Length 2 M
